G400-ER: Breakthrough Throughput, Empowering Genomic Discovery

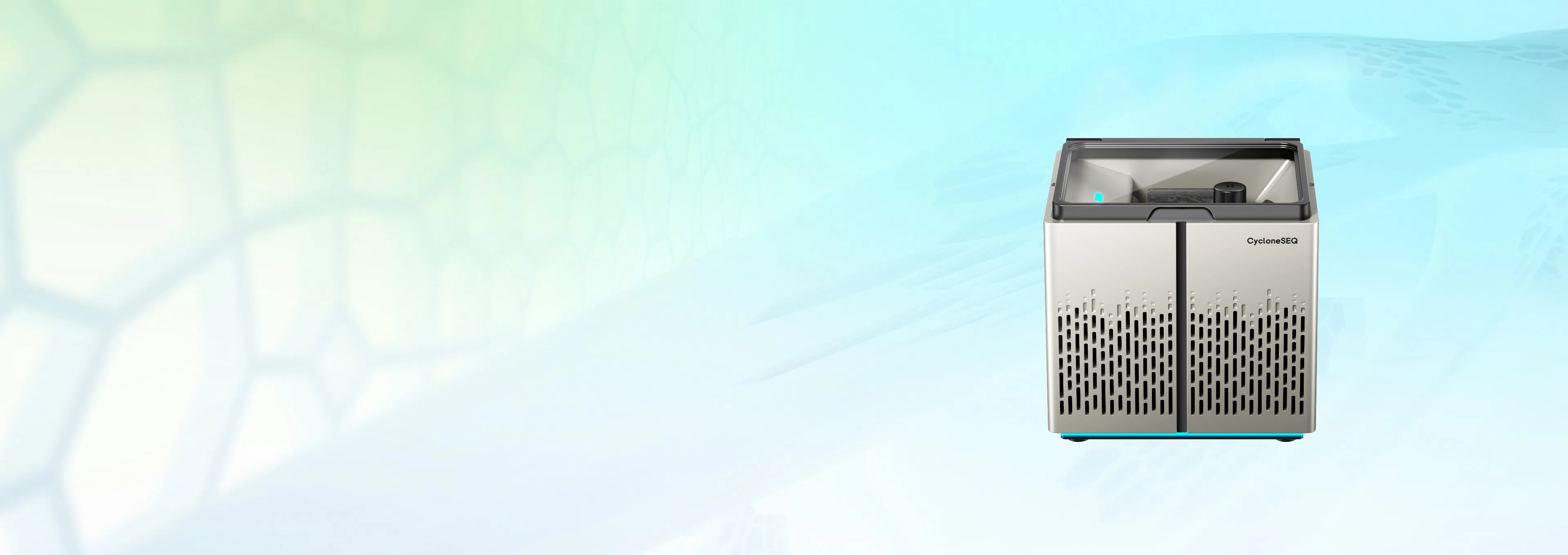

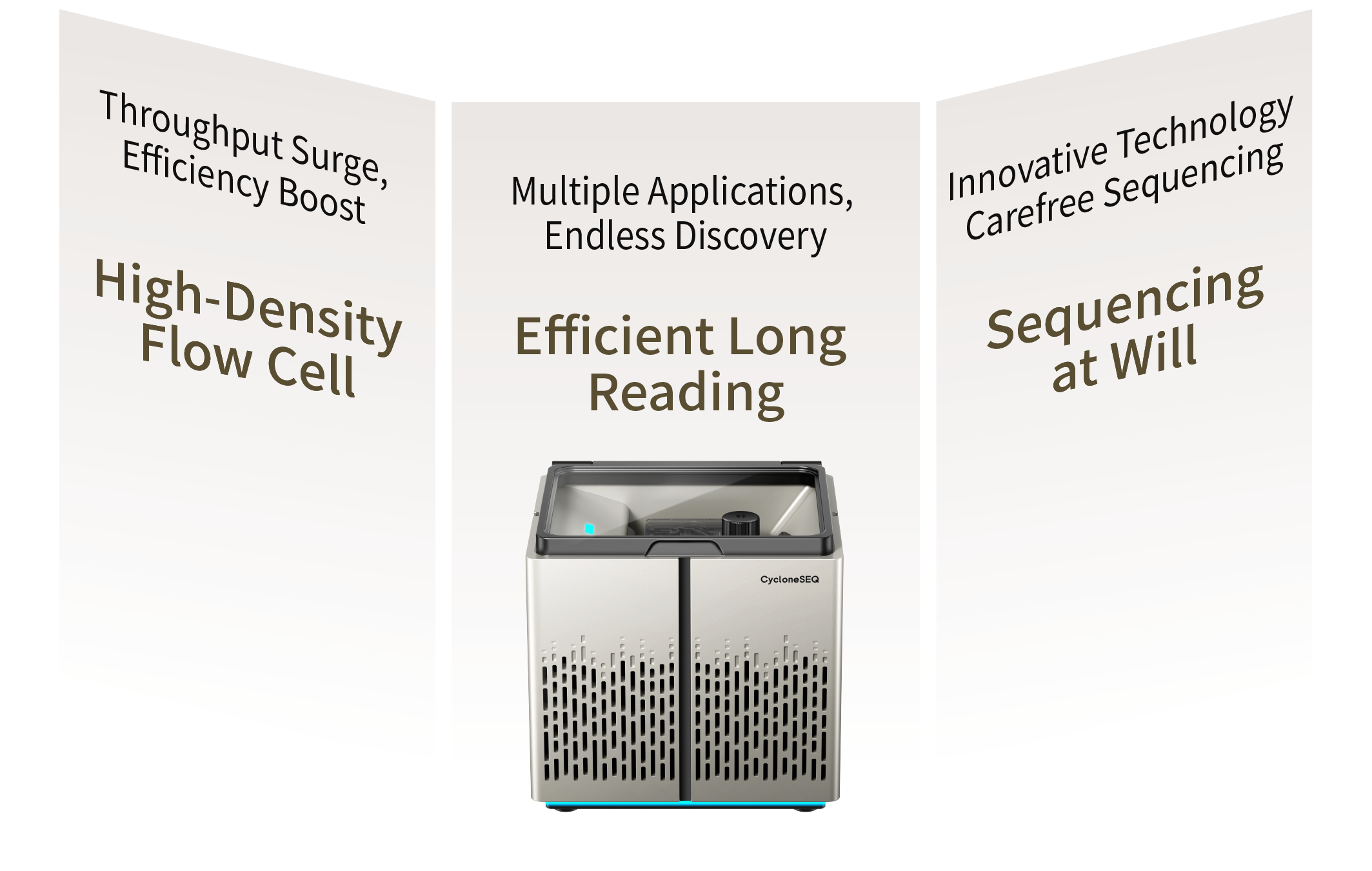

The G400-ER nanopore genetic sequencer, a self-developed product based on the CycloneSEQ platform, integrates a high-throughput, high-density flow cell. This instrument combines long read lengths, high data output, and real-time sequencing capabilities, enabling efficient and precise analysis of complex genomes while simultaneously detecting base modifications. It supports diverse applications including whole-genome resequencing, de novo genome assembly, full-length transcriptome sequencing, and epigenomic sequencing, ensuring accuracy across the entire genomic research spectrum.
Features

Performance Parameter
G400-ER Nanopore Gene Sequencer | |
Number of Nanopore Proteins |
30,000+/Flow Cell |
Sequencing Acquisition Time |
Real-time |
Designed Throughput / Flow Cell |
400 Gb |
Chemical Modifications |
Support 5mC Methylation Sequencing |
System Parameter
- Power & Dimensions & Net Weight
Power Supply Type: DC, 12 V
Maximum Power Consumption: 120 W
Flow Cell Modules: 1
Dimensions: 155 mm×140 mm×148 mm (L×W×H)
Net Weight: 3.5 kg
- Operating Environment Requirements
Operating Temperature: 15 ℃~30 ℃
Relative Humidity: 20%~70% RH, without condensation
