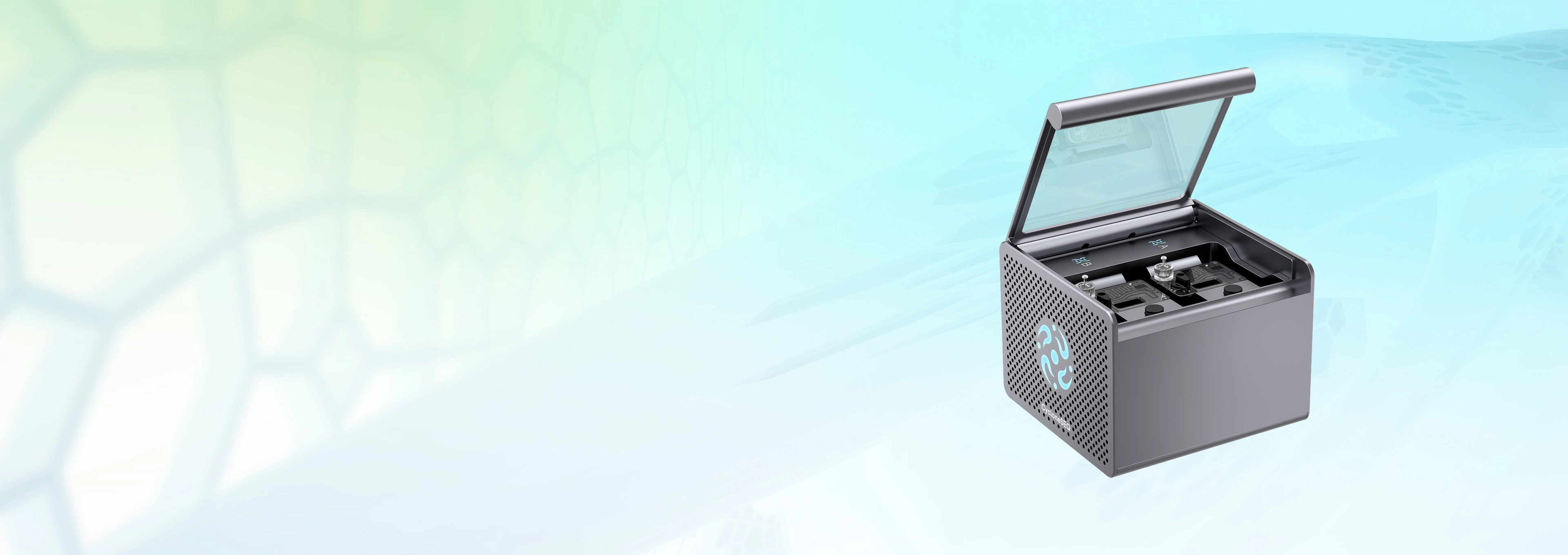

CycloneSEQ-WT02: Nano Gates to the Macro Cosmos
CycloneSEQ-WT02, a nanopore genetic sequencer features a dual flow cell architecture that enables independent operation simultaneously. With flexible throughput options and exceptional capabilities such as broad coverage, rapid sequencing, and flexible testing. It effectively addresses the challenges of complex sequences, meeting the diverse sequencing needs across various applications, such as microbial genome research, microbial metagenomes, amplicon-based microbial detection, targeted disease testing, small whole-genome sequencing and whole transcriptome study, etc.
Features
Performance Parameter
| CycloneSEQ-WT02 | |
|---|---|
|
Number of Nanopore Proteins |
4096 / Flow Cell |
|
Sequencing Speed |
350 nt/s - 420 nt/s |
|
Sequencing Time |
10 mins - 72 hrs |
|
Sequencing Acquisition Time |
Real-time |
|
Read Length |
100 bp - Mbp Level |
|
Maximum Throughput / Flow Cell (in Real Laboratory Experiments) |
50 Gb |
|
Data Output Rate / Flow Cell |
10 Mb / min |
|
Single Time Accuracy |
97% |
|
Consensus Accuracy |
99.99% (40X) |
System Parameter
- Operating Environment
Operating Temperature: 15°C ~ 30°C
Relative Humidity: 20% ~ 70% RH, without condensation
- Power Supply & Size & Net weight
Power Supply Type: DC12V
Maximum Power Consumption: 72W
Chip Modules: 2 units, independently operable
Dimensions: 160 × 165 × 127 mm
Net Weight: 3.08 kg
